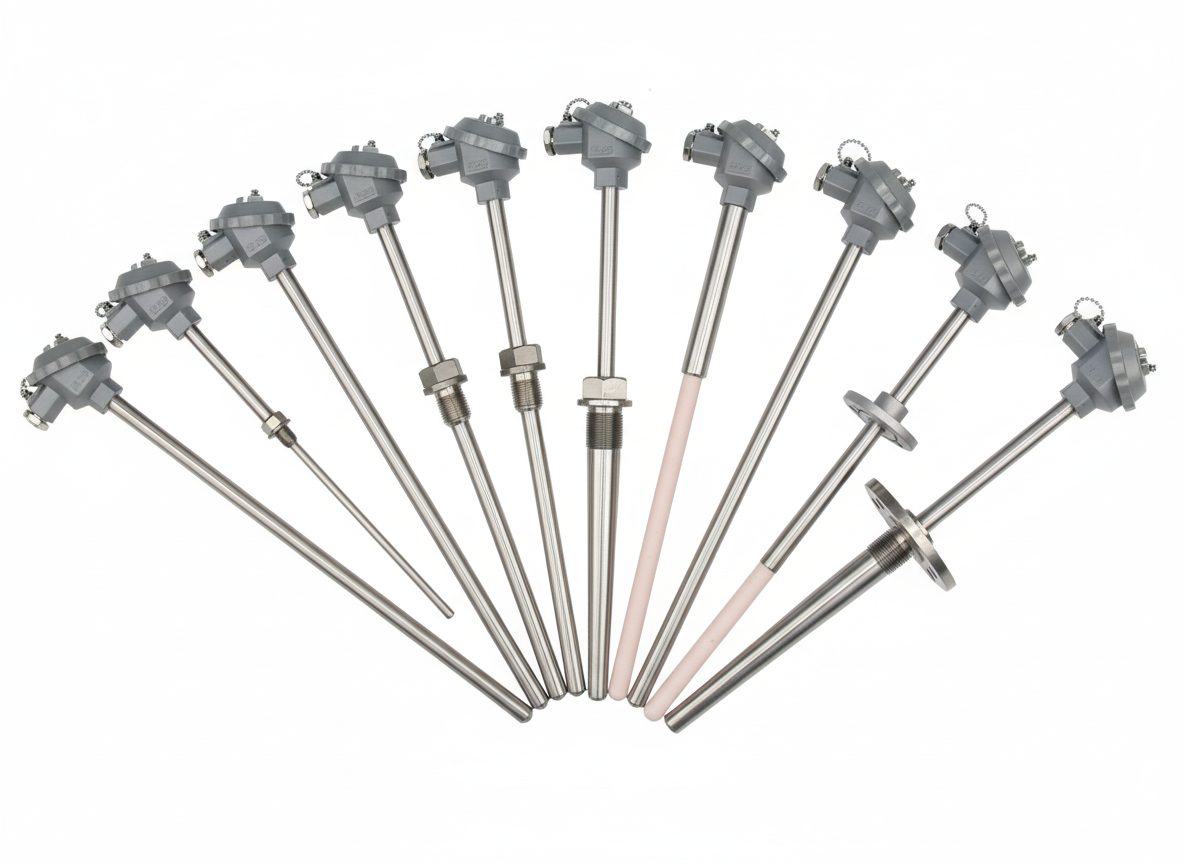

High-temperature precious metal thermocouple for extreme-heat applications.
Quick temperature detection
Industrial-grade construction
Quality Management
Aerospace Standard
We're ISO 9001 & AS 9100 certified, ensuring reliable, precise, and globally recognized quality in every process.
Ensure secure installation with appropriate compression fittings to prevent movement and maintain accurate readings. Always follow torque specifications to avoid damage to the thermocouple sheath.
Regular insulation resistance testing helps identify potential failures before they occur. Test using a megohmmeter at the manufacturer’s recommended intervals to ensure reliable performance.
Examine connectors for signs of corrosion, wear, or loose connections. Clean contacts with appropriate solvents and ensure proper mating to maintain signal integrity and prevent reading errors.
Follow preventive maintenance schedules based on operating conditions. Replace sensors showing signs of degradation such as erratic readings, physical damage, or insulation breakdown to maintain system accuracy.
| Parameter | Specification |
|---|---|
| Temperature Range | -200°C to +1100°C (-328°F to +2012°F) |
| Accuracy | ±1.5°C or ±0.4% (whichever is greater) |
| Response Time | < 0.5 seconds (90% of step change) |
| Sheath Material | Stainless Steel 316, Inconel 600 |
| Insulation | Mineral (MgO) |
| Diameter Options | 1.5mm, 3mm, 4.5mm, 6mm |
| Length Options | Custom lengths from 150mm to 3000mm |
| Connection Type | Standard miniature connector |
| Protection Rating | IP67 (with proper sealing) |
| Compliance | IEC 60584, ASTM E230 |
