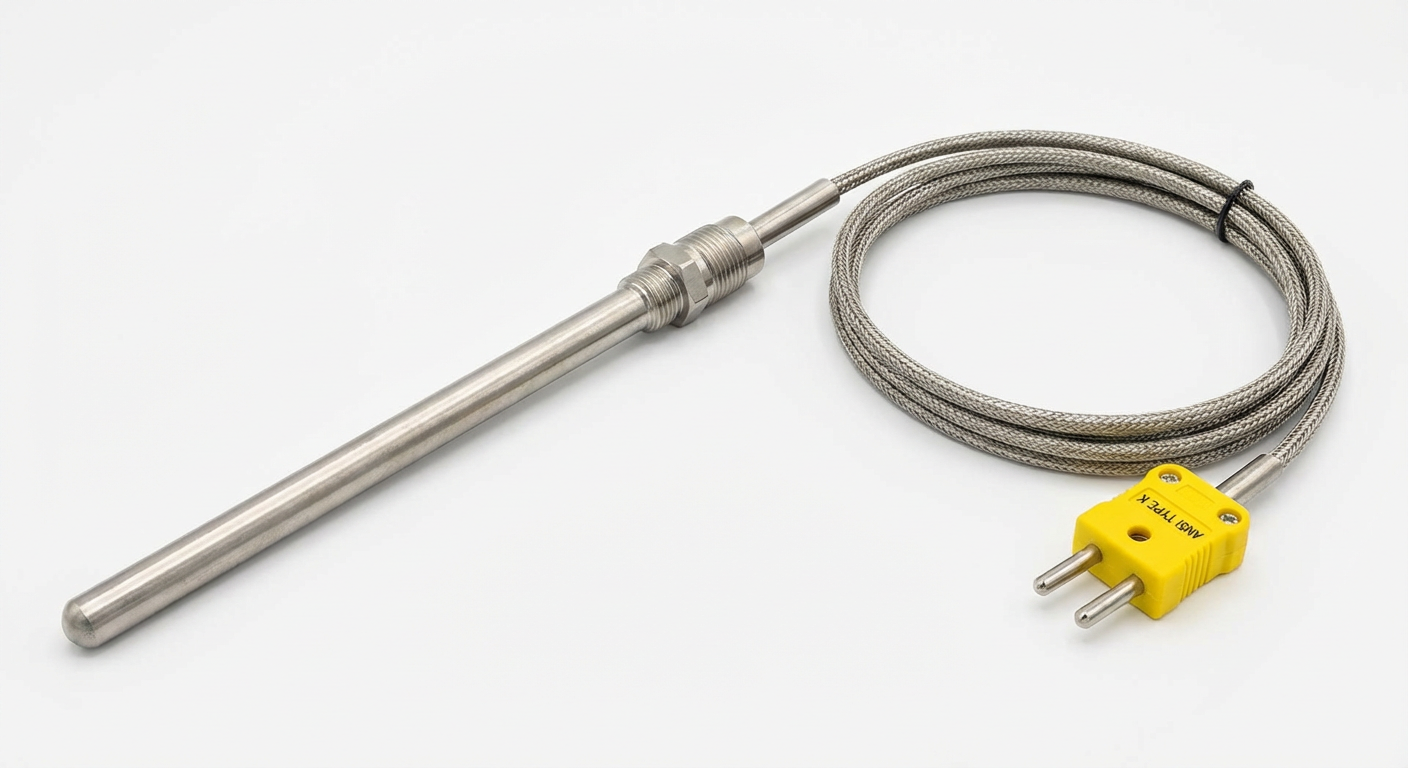

MI Thermocouple with Mini Plug/Jack

MI Thermocouple with Mini Plug/Jack

High-performance MI thermocouple with ANSI-standard mini plug for quick industrial connection.

Category:

Fast Response

Quick temperature detection

High Durability

Industrial-grade construction

ISO 9001 Certified

Quality Management

AS 9100 Certified

Aerospace Standard

We're ISO 9001 & AS 9100 certified, ensuring reliable, precise, and globally recognized quality in every process.

Installation & Maintenance Tips

Use Proper Compression Fittings

Ensure secure installation with appropriate compression fittings to prevent movement and maintain accurate readings. Always follow torque specifications to avoid damage to the thermocouple sheath.

Regular insulation resistance testing helps identify potential failures before they occur. Test using a megohmmeter at the manufacturer’s recommended intervals to ensure reliable performance.

Examine connectors for signs of corrosion, wear, or loose connections. Clean contacts with appropriate solvents and ensure proper mating to maintain signal integrity and prevent reading errors.

Follow preventive maintenance schedules based on operating conditions. Replace sensors showing signs of degradation such as erratic readings, physical damage, or insulation breakdown to maintain system accuracy.

ParameterSpecification
Temperature Range-200°C to +1100°C (-328°F to +2012°F)
Accuracy±1.5°C or ±0.4% (whichever is greater)
Response Time< 0.5 seconds (90% of step change)
Sheath MaterialStainless Steel 316, Inconel 600
InsulationMineral (MgO)
Diameter Options1.5mm, 3mm, 4.5mm, 6mm
Length OptionsCustom lengths from 150mm to 3000mm
Connection TypeStandard miniature connector
Protection RatingIP67 (with proper sealing)
ComplianceIEC 60584, ASTM E230

The Threaded Thermowell features a precision-machined male thread for fast and secure installation into tanks, pipelines, or process systems. Designed to safeguard temperature sensors against pressure, corrosion, and flow velocity, this thermowell is widely used in oil & gas, food processing, and chemical industries.

Features:

  • Easy threaded installation

  • High mechanical strength

  • Suitable for RTDs, thermocouples, and sensors

  • Available in various thread sizes (1/2″, 3/4″, 1″)

Technical Specifications:

  • Material: SS304 / SS316

  • Thread Type: NPT / BSP

  • Temperature Range: Up to 750°C

  • Stem Type: Straight or Tapered
