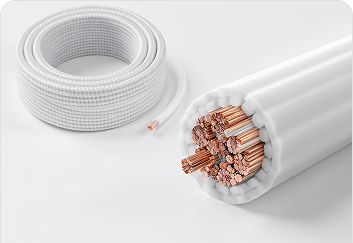

Fiberglass Insulated Cable

Fiberglass Insulated Cable

Durable Fiberglass Insulated Cable for high-temperature electrical applications.

Category:

Fast Response

Quick temperature detection

High Durability

Industrial-grade construction

ISO 9001 Certified

Quality Management

AS 9100 Certified

Aerospace Standard

We're ISO 9001 & AS 9100 certified, ensuring reliable, precise, and globally recognized quality in every process.

Installation & Maintenance Tips

Use Proper Compression Fittings

Ensure secure installation with appropriate compression fittings to prevent movement and maintain accurate readings. Always follow torque specifications to avoid damage to the thermocouple sheath.

Regular insulation resistance testing helps identify potential failures before they occur. Test using a megohmmeter at the manufacturer’s recommended intervals to ensure reliable performance.

Examine connectors for signs of corrosion, wear, or loose connections. Clean contacts with appropriate solvents and ensure proper mating to maintain signal integrity and prevent reading errors.

Follow preventive maintenance schedules based on operating conditions. Replace sensors showing signs of degradation such as erratic readings, physical damage, or insulation breakdown to maintain system accuracy.

ParameterSpecification
Temperature Range-200°C to +1100°C (-328°F to +2012°F)
Accuracy±1.5°C or ±0.4% (whichever is greater)
Response Time< 0.5 seconds (90% of step change)
Sheath MaterialStainless Steel 316, Inconel 600
InsulationMineral (MgO)
Diameter Options1.5mm, 3mm, 4.5mm, 6mm
Length OptionsCustom lengths from 150mm to 3000mm
Connection TypeStandard miniature connector
Protection RatingIP67 (with proper sealing)
ComplianceIEC 60584, ASTM E230

This Stainless Steel Thermowell is machined from high-quality SS304/SS316 to protect temperature sensors such as thermocouples and RTDs from corrosion, pressure, and flow impact. Ideal for chemical, petrochemical, HVAC, and industrial applications, it ensures accurate and safe temperature monitoring without direct medium exposure.
Compatible with all standard temperature sensors.

Features:

  • High corrosion resistance

  • Suitable for high-pressure applications

  • Compatible with RTD & Thermocouple sensors

  • Long service life

  • CNC-machined accuracy

Technical Specifications:

  • Material: SS304 / SS316

  • Process Connection: Threaded / Flanged / Weldable

  • Temperature Range: Up to 800°C

  • Pressure: Up to 300 bar

  • Stem Type: Straight

  • Finish: Polished Stainless Steel
